Product Type /Application Range

YJZGG: Indoor type

Rated Voltage: 48/66RV, 56/77kV, Cable cross section: 95-800mm2

Rated Voltage: 64/110kV, 76/132kV, Cable cross section: 240-1600mm2

Rated Voltage: 127/220kV Cable cross section: 240-3000mm2

Rated Voltage: 290/500kV, Cable cross section: 800-3000mm2

Product Characteristics

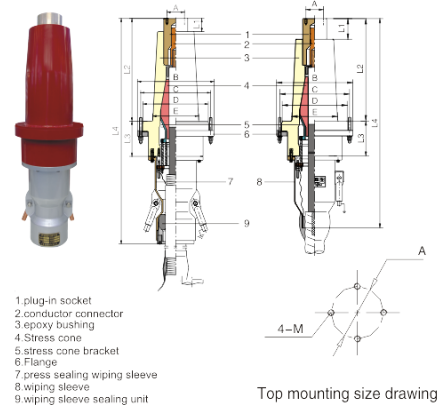

The stress cone is made of imported EPDM. The surface pressure between the stress cone and the epoxy bushing is maintained by the spring device(stress cone bracket) so that the press of interface is kept permanently  during the course of running. This structure can overcome the disadvantage or defect from material aging.

The termination is whole dry type, no oil, eliminate the problem of leakage.

Compact, light weight, and small volume, easy to install.
